MolycarbideŽ Technical
Typical Mechanical Properties
Material |
Strength (Mpa) |
Elongation
(%) |
BHN/3000 |
Tensile |
Yield |
Cast Iron |
140 |
140 |
0 |
100-300 |
Ductile Iron (typical) |
414 |
275 |
18 |
75 |
Moly 1.2% |
625 |
525 |
7 |
200 |
Moly 2% |
630 |
565 |
7 |
250 |
Moly 3% |
600 |
510 |
12 |
330 |
Moly 4% |
550 |
500 |
7 |
430 |
Moly 5% |
500 |
450 |
7 |
550 |
Moly 6.5% |
470 |
425 |
7 |
700 |
MolycarbideŽ has far superior strength to cast iron and is
comparable to ductile iron (Fig. 1). Molycarbide industrial rotors
break point occurred at ~15.2 metric tones compared to cast iron
rotors which broke at ~8.7 metric tonnes.
Fig 1a
Fig 1b

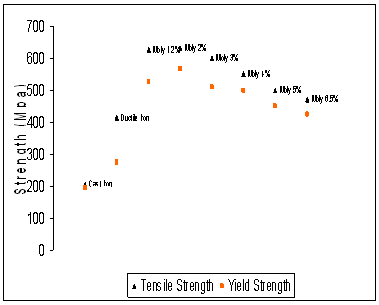

Figure 1a. Strength comparison between cast iron, ductile iron and
MolycarbideŽ products, b; deflection of a MolycarbideŽ rotor prior
to return to original shape, without any indication of disc face
variation. (All tests conducted with a Shimadzu Charpy Compression
Testing machine).
Heat test
Two molycarbide heavy duty disc rotors were bolted together (torque
setting 150NM +90° rotation), heated to 300 °C for 20 minutes and
air-cooled to room temperature. No cracking, delaminating nor
distortion was observed (Fig. 2).
Fig. 2 Fig 2a
Figure 2a. A MolycarbideŽ disc rotor, treated with crack-testing
dye, and b; no evidence of cracking after heating to 300°C for 20
minutes.
Inertial Dynamometer Friction Behaviour Assessment
Links Testing Laboratories has developed a technologically advanced
testing system that allows for the controlled comparison of a
variety of parameters between different frictional materials.
MolycarbideŽ rotors were compared to OE rotors using both
performance and OE pads. The co-efficient of friction was evaluated
under variable pressure, temperature and linear speed. MolycarbideŽ
consistently maintained a higher co-efficient of friction
(Fig. 2).
Disc Thickness Variation (DTV)
During Links testing, MolycarbideŽ rotors exhibited less than half
the loss in rotor thickness than the OE rotors did. Molycarbide
rotors were also tested in situ and ran under normal
conditions for 20,000km. A variation of less than 5 microns in disc
thickness was measured, which is considerably less than the industry
standard of 20 microns. Brake shudder can occur when DTV is
between 15-20 microns. MolycarbideŽ and OE rotors were subjected to
shudder tests and, again, MolycarbideŽ excelled, with a result of
8.5/10 compared to 5-6/10 for conventional cast iron disc rotors. |
